**IN STORE PURCHASE ONLY** - SHIPPING NOT AVAILABLE

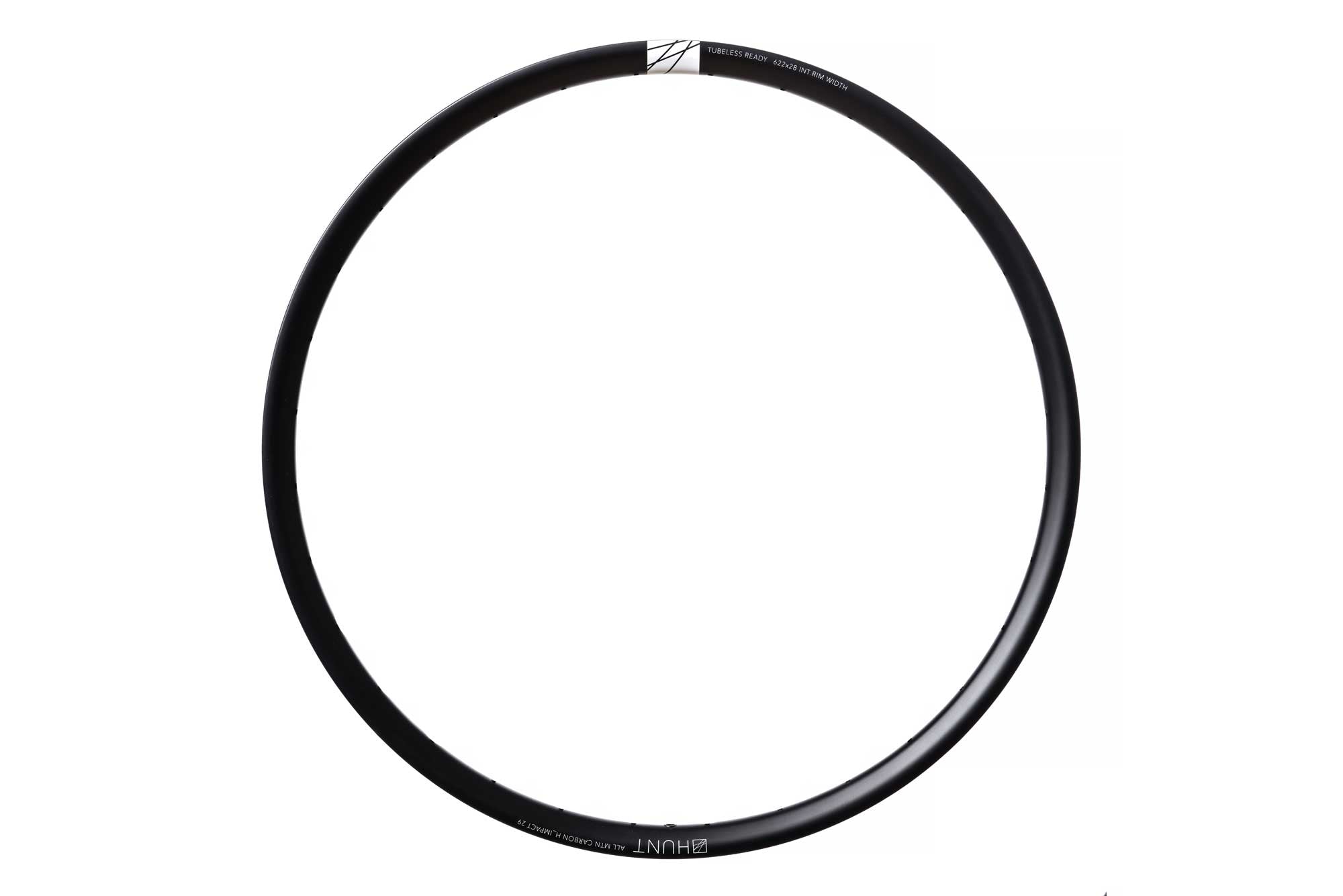

All-MTN Carbon: Front and rear specific rims optimized for compliancy up front and high impact strength out back

Responsive, compliant and incredibly strong

Front: 27.5/29" | 28 Wide Int | 475/500g

Rear: 27.5/29" | 28 Wide Int | 535/560g

We put a huge emphasis on durability for the All-MTN rim - Unidirectional T24/30 with 3K weave reinforced spoke holes, Extra thick sidewalls for impact protection and V:Asborb resin to reduce vibration. The resin blends in the carbon layering which cures at a lower temperature. Lower temperature resins are less brittle meaning they have greater resistance to impacts and dampen vibration more effectively.

Front rim weight 475/535g (27.5"/29") – Excellent handling and vibration absorption due to the lower material density lay-up, matched to 28 spoke count to improve compliance and grip where it’s needed most.

Rear rim weight 535/560g (27.5"/29") – High impact lay-up with extra material matched to the higher 32 spoke count. Greater impact strength, better stability and more precise tracking at speed.

Detailed Specifications

Rim

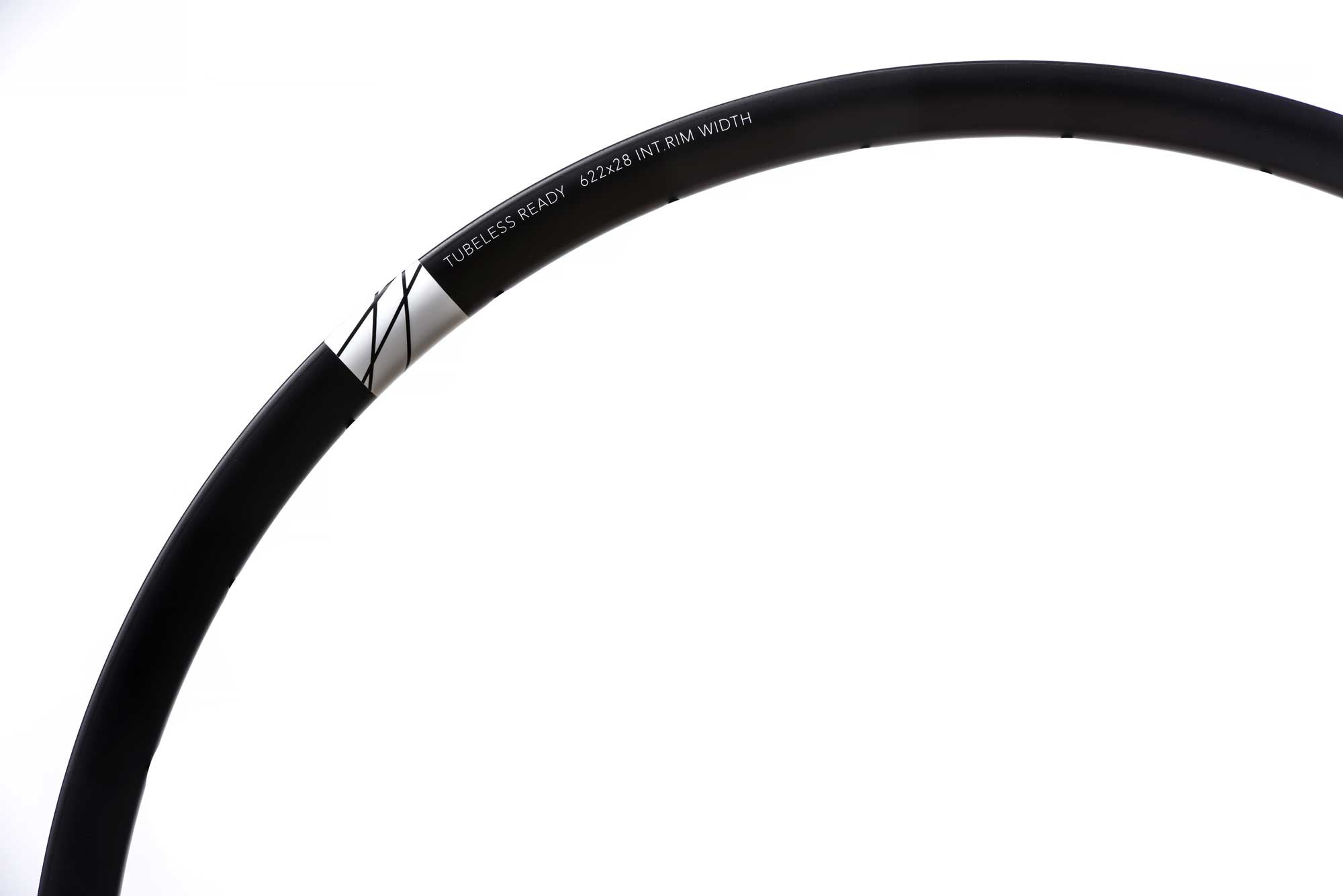

• Hookless Tubeless-ready – designed to work excellently with tubeless tires.
• H_IMPACT Unidirectional T24/30 with 3K weave reinforced spoke holes.
• Extra thick sidewalls for impact protection and V:Asborb resin to reduce vibration
• H-lock bead-seat up-kicks for easy and secure tubeless installation
• 28mm internal width ideal for 2.3"-2.5" tire widths, but also work very well with 2.25"-2.6".
• Maximum tire pressure for this rim: Up to 2.5" do not exceed 40psi. 2.6 - 3.0" - do not exceed 30psi. Please do not exceed the maximum pressure stated on your tire.
• ERD
• 27.5" - 560mm
• 29" - 598mm
• Lacing
• Front - Cross 3
• Rear - Cross 3
• Recommended Spoke Tensions
• Front/Rear - 105-120 kgf
